ZEMO - Zebrafish Monitor

Founding developers Seth Johnson, Joshua Yates, Zachary Frederich and Jonathon Hill

$1,490.00 USD

Qty

Accessories for ZEMO - Zebrafish Monitor

Founding developers Seth Johnson, Joshua Yates, Zachary Frederich and Jonathon Hill

The ZeMo was developed by Jonathon Hill and his team at Brigham Young University, Dept. of Physiology and Developmental Biology. They are interested in how genes are regulated during heart formation. ZeMo was created to help monitor and optimize the water conditions of their zebrafish holding tanks.

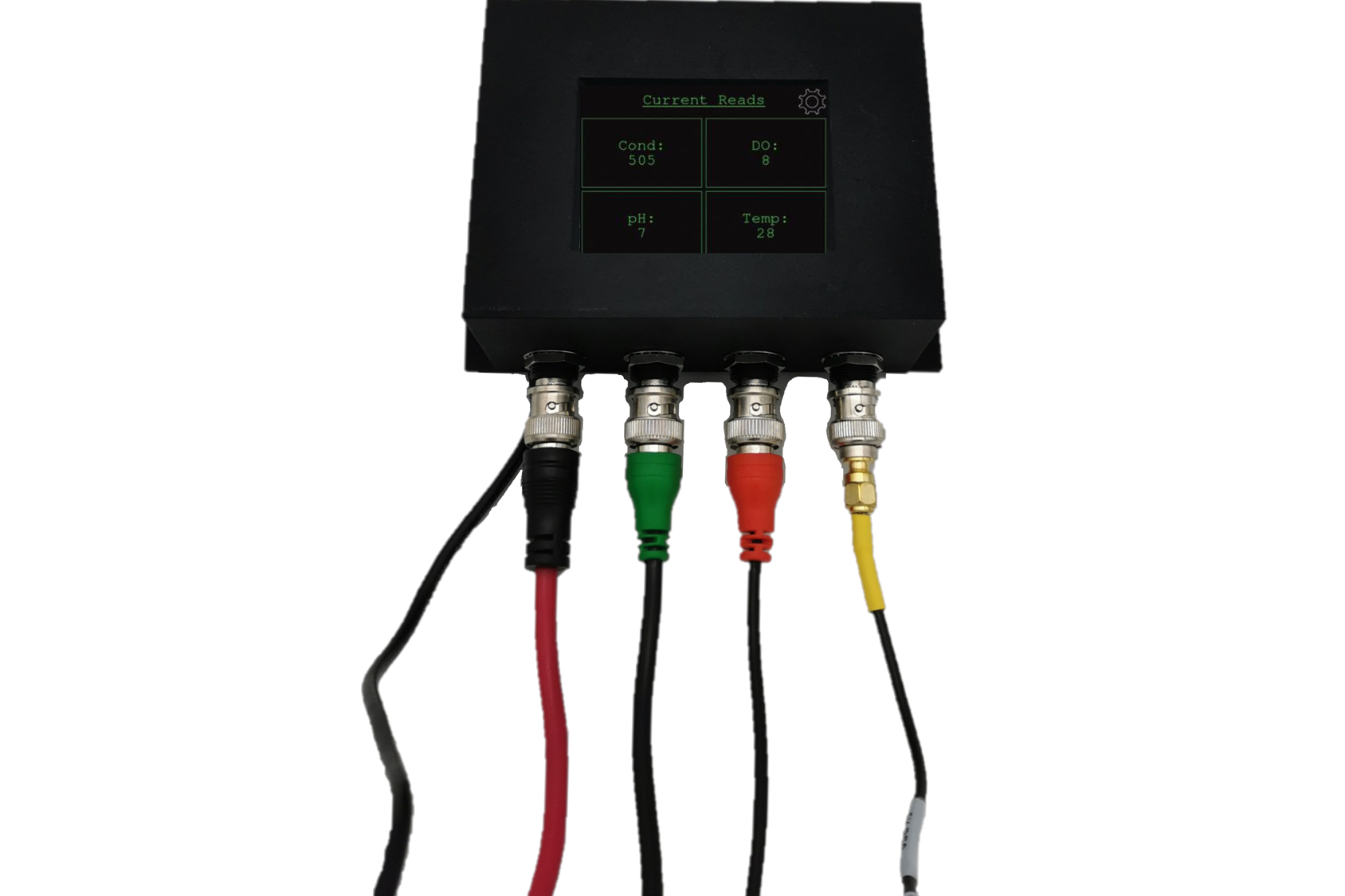

ZeMo, the ZEbrafish MOnitor, is an automated aquarium monitoring system. It was created with research zebrafish in mind, but can be used for any aquatic species. It continually monitors water temperature, pH, conductivity (salt content), and dissolved oxygen but is also customizable. Its web-based software allows viewing parameter histories online. It alerts users when water quality values leave the desired range. Thus, for zebrafish and other aquatic organisms it provides careful monitoring for adjusting and optimizing water quality for health and survival.

EXPERIMENTAL CAPABILITIES

The following parameters are tracked with our kit.

Parameter	Unit	Sensor
Temperature	Celsius	Atlas Scientific PT-1000 + EZO™ RTD Temperature Circuit
Conductivity	μS/cm	Atlas Scientific ENV-40-EC-K1.0 + EZO™ Conductivity Circuit
Dissolved Oxygen	mg/L	Atlas Scientific ENV-40-DOX + EZO™ Dissolved Oxygen Circuit
Acidity	pH	Atlas Scientific ENV-40-pH + EZO™ pH Circuit

KEY FEATURES

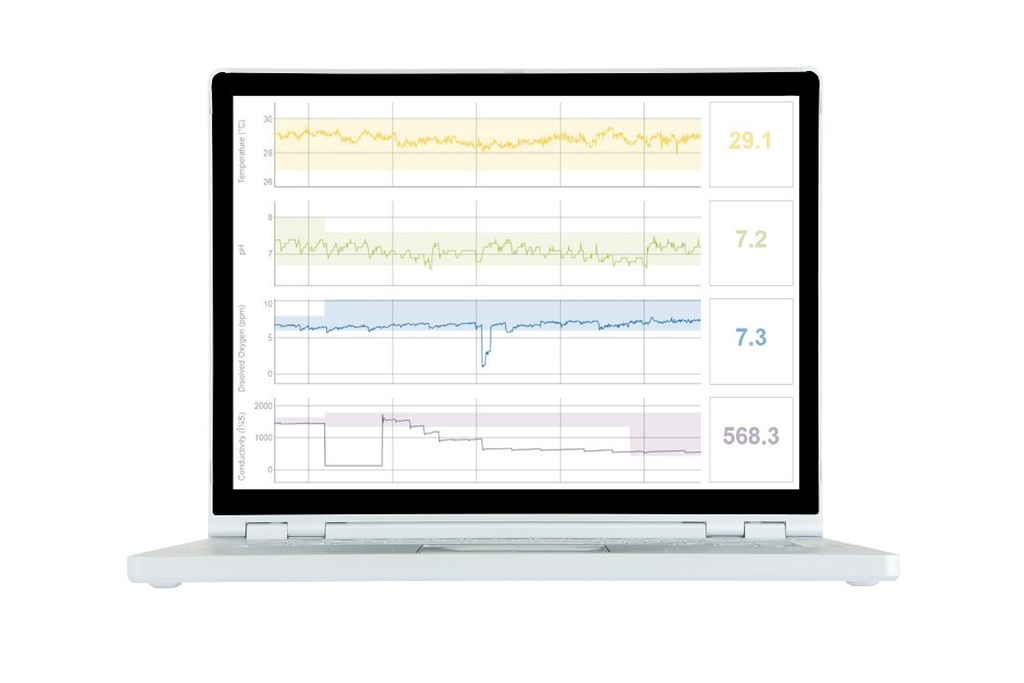

The ZeMo is a ready-to-go, hassle free water quality monitoring system that has been tailored for the research environment. The ZeMo uses the high quality DIY components of Atlas Scientific with on-board calibration and temperature compensation. It integrates them for a high-end open-source water monitoring system that includes an embedded computer, a touchscreen, web interface, and email alerts. It makes continuous water quality monitoring attainable for a wide range of aquarium installations. The open-source nature of its software allows customizing ZeMo functionality to perfectly integrate it into the workflow of research aquarium installations and experimental procedures. The cloud connection allows users to access their data remotely, display them in dynamic graphs, and even embed them in their lab's website.
