Mini2P- Collection Fiber v1

Founding developers Edvard Moser, May-Britt Moser, and Weijian Zong

Accessories for Mini2P- Collection Fiber v1

Founding developers Edvard Moser, May-Britt Moser, and Weijian Zong

Edvard Moser and May-Britt Moser lead the Kavli Institute for Systems Neuroscience in Trondheim, Norway. In 2014 they received the Nobel Prize in Physiology or Medicine.

Weijian Zong is a researcher at the Kavli Institute for Systems neuroscience where his main research interests are bio-imaging, neuroscience, neuronal computation.

The Mini2P-Collection Fiber v1 serves as a crucial component within the Mini2P miniscope setup. The Mini2P is a 2-photon miniscope for large-scale calcium imaging in freely moving mice. The Mini2P can obtain stable simultaneous recordings of over a thousand cells across multiple planes in densely active cortical regions, even during various behavioral tasks.

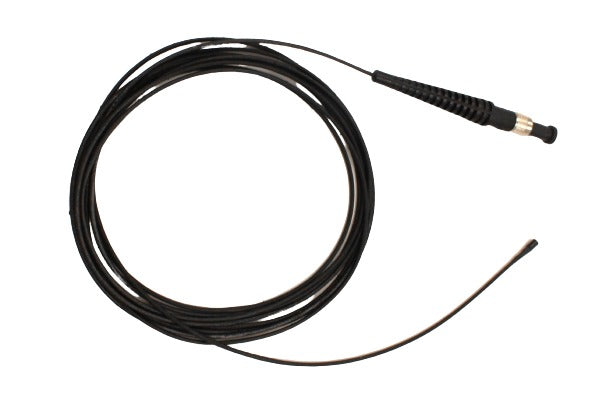

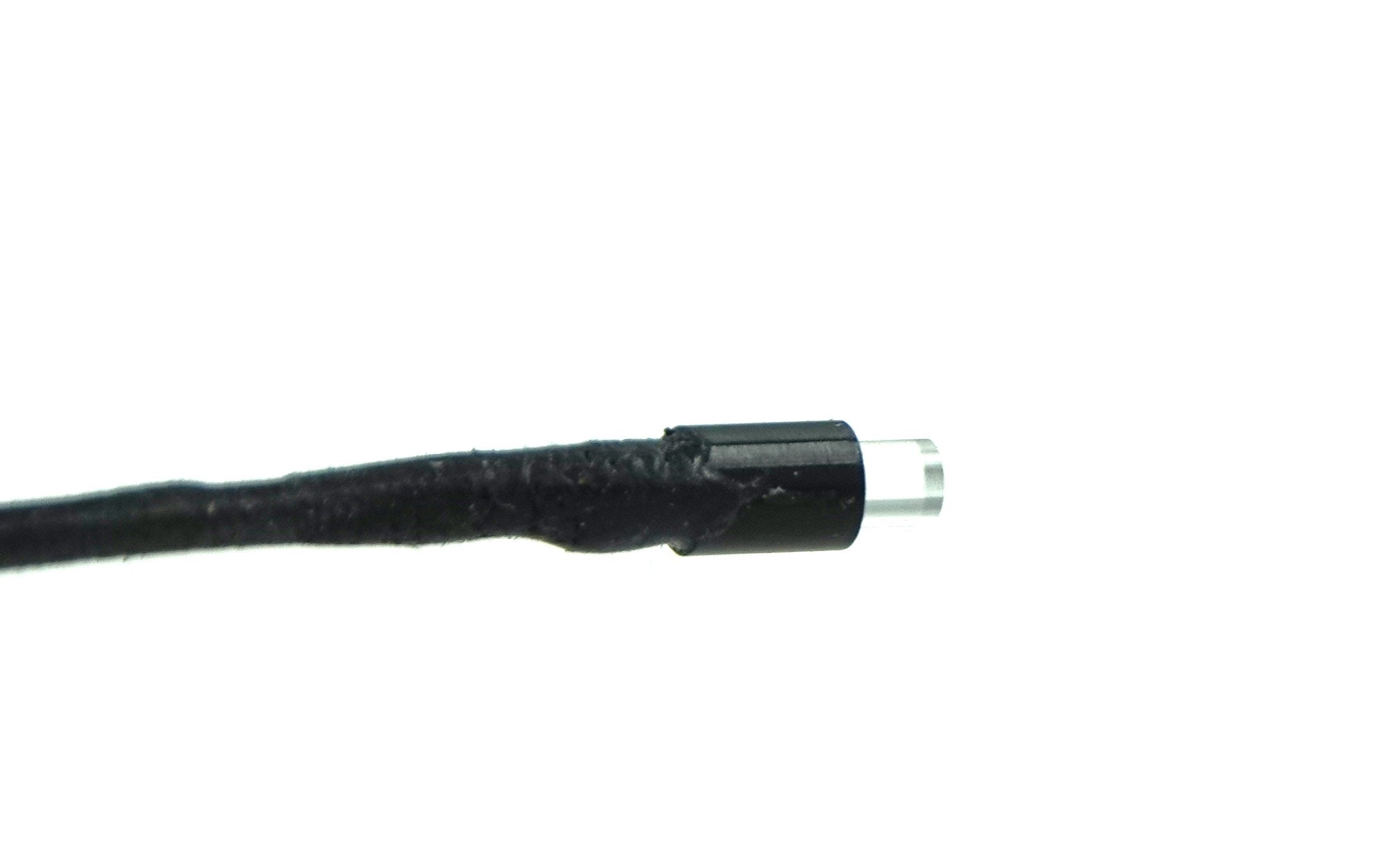

The Mini2P-Collection Fiber v1 guides emitted light from the scope back to the detectors. It comprises numerous independent fine fibers bundled in a thin sheet. The collection fiber is exceptionally soft and is equipped with anti-reflectance windows at both ends, along with a grin lens at the scope's side. The detector side is fitted with an SMA connector. The fiber sheet is coated with a thin layer of black rubber to enhance stray light segregation. Each Mini2P-Collection Fiber v1 passes a quality control process following the Mini2P team's quality criteria: more than 80% photon pass-through and less than 3 dead cores.


  • Length: 2.5 meters
  • Soft and flexible
  • Rubber coat for light exclusion
  • Equipped with an SMA connector
  • Anti-reflectance windows at both ends
  • Verified to achieve >80% efficiency and <3 dead cores


    • One Collection Fiber, 2.5 meters in length, with a scope interface diameter of 1.8 mm and an SMA connector


    Shipped within 4 weeks after order is received.


    W Zong, HA Obenhaus, ER Skytøen, H Eneqvist, NL de Jong, R Vale, MR Jorge, MB Moser, EI Moser (2022). Large-scale two-photon calcium imaging in freely moving mice. Cell.
