NINscope - DAQ PCB

Founding developers Andres de Groot, Joop Bos, John van Veldhuijzen, Joris Coppens and Tycho Hoogland



Founding developers Andres de Groot, Joop Bos, John van Veldhuijzen, Joris Coppens and Tycho Hoogland

The Mechatronics department, De Zeeuw and Willuhn labs at the Netherlands Institute for Neuroscience with Tycho Hoogland as main coordinator developed the NINscope.It is based on the design pioneered by Mark Schnitzer's Lab at Stanford and published in Nature Methods in 2011. The NINscope builds on the work by the UCLA Miniscope Team and uses the UCLA Miniscope DAQ v3.2 with only minor modifications.

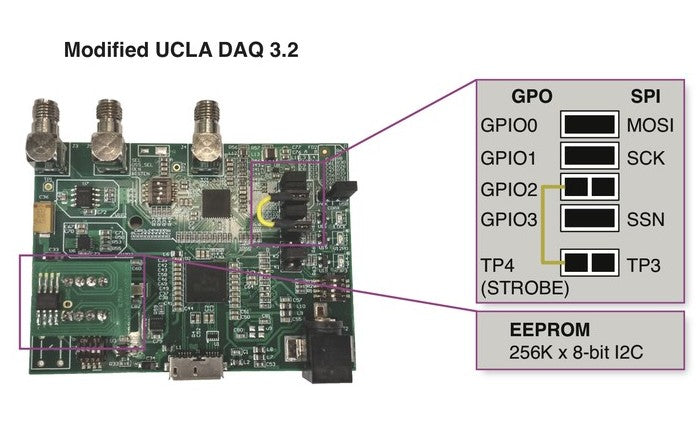

Data Acquisition PCB for NINscope

    • The Data Acquisition PCB mediates communication between the Ninscope and the PC. It connects over high speed USB 3.0
    • Based on UCLA Miniscope DAQ v3.2 with only minor modifications.
    • Fully programmed with the firmware flashed to the EEPROM





    Documentation Source Code
