MiniCAM
Founding developer Daniel Aharoni
$399.00 USD
The MiniCAM is a camera for imaging freely behaving animals in behavioral and neuroscience experiments. The MiniCAM is both powered and communicates over a single 50 ohm coaxial cable minimizing the cabling that needs to run into the experimental environment.
The MiniCAM requires a Miniscope V4 - Data Acquisition System (DAQ) (connected via the 50 ohm coaxial cable) and a host computer (connected over USB3) running the Miniscope Software (or any other third-party application that can stream UVC cameras and can communicate through a Miniscope DAQ).
KEY FEATURES
- 5 Megapixel CMOS sensor
- 50 frames per second as default
- 1024 x 768 resolution as default
- Higher frame rate possible at lower resolution; also, higher resolution possible at lower frame rate
- The image sensor can be configured through the Miniscope software
- LED illumination ring intensity can be controlled through the Miniscope software.
- SMA coax connector for both power and data transfer
- Compatible with our Miniscope V4 - Data Acquisition System (DAQ)

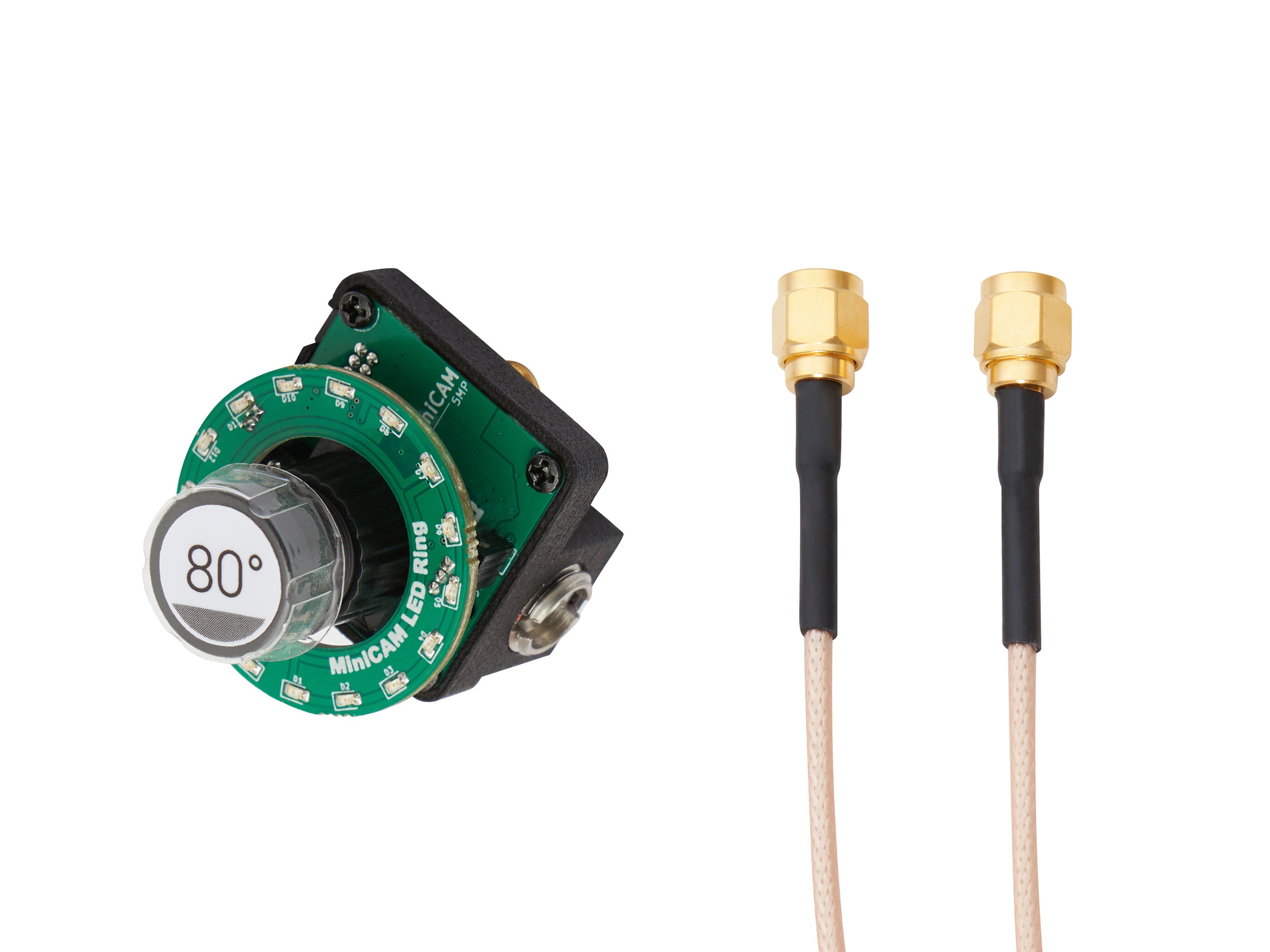

CONTENTS

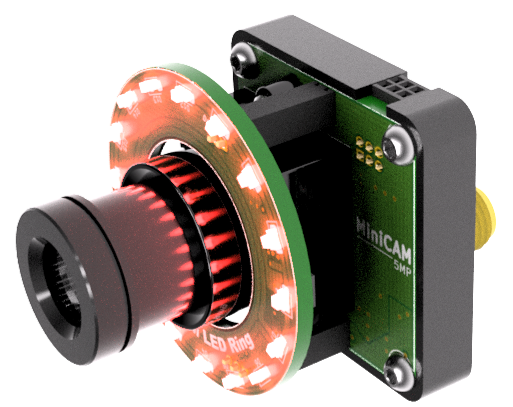

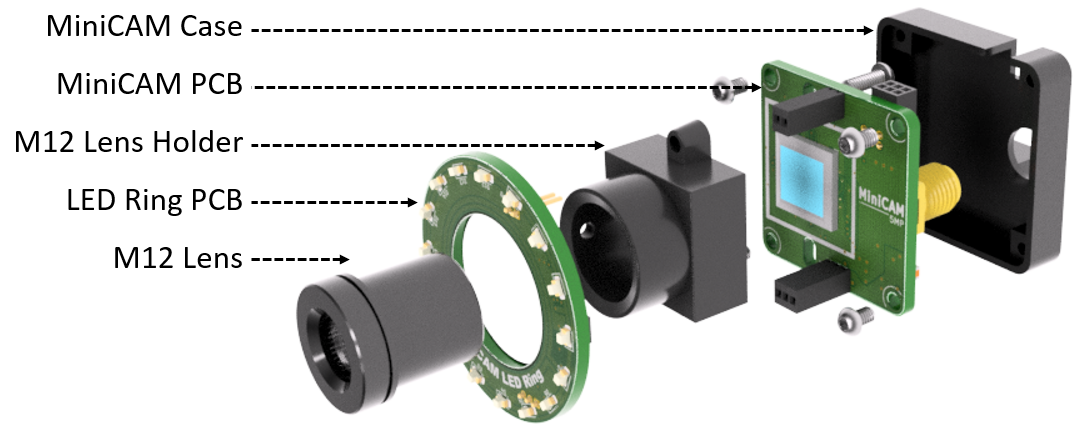

- MiniCAM PCB in 3D printed housing with M12 lens mount

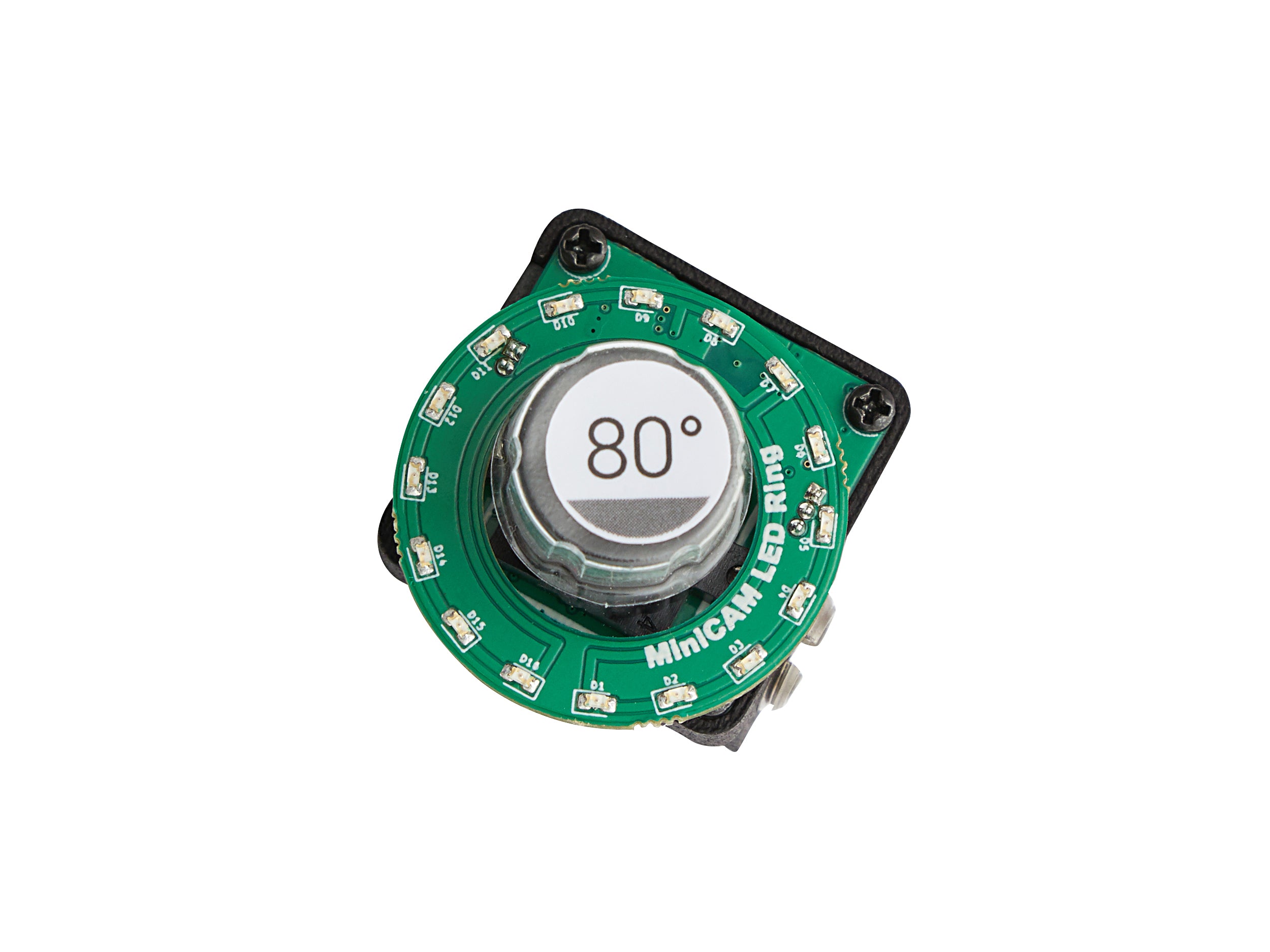

- LED ring PCB
- 1.5m, 50 ohm coaxial cable with SMA/SMA connectors
Lens Not Included
The M12 Lens is not included. We recommend the Arducam M12 Lens set that includes a range of M12 lenses for different view angles.
