Mini2P - set of CNC parts

Comprehensive Set of 17 Machined Parts for Mini2P Assembly

We are offering our initial series of 8 sets of CNC parts for immediate fulfilment. Thereafter, delivery time will be 6-8 weeks.

The Mini2P is a 2-photon miniscope for large-scale calcium imaging in freely moving mice. It allows stable simultaneous recordings of more than a thousand cells across multiple planes of densely active cortical regions in a wide spectrum of behavioral tasks without impediment of the animal's behavior.

The Mini2P - set of CNC parts has the 17 CNC machined parts for the MINI2P miniscope setup. NOT included are Scope Body P1 (available as separate product).

The assembly tutorial video for the Mini2P can be found here.

Miniscope body parts

• Scope body P2 (PEEK CF30 black)
• Scope body P3 (PEEK CF30 black)
• Stitching adapter (ML-0000_AP0000) (PEEK CF30 black)
• Baseplate (Al6061 black anodized)
• Alignment tool (Al6061)
• NOT included is scope body P1 (offered separately with integrated µTlens)

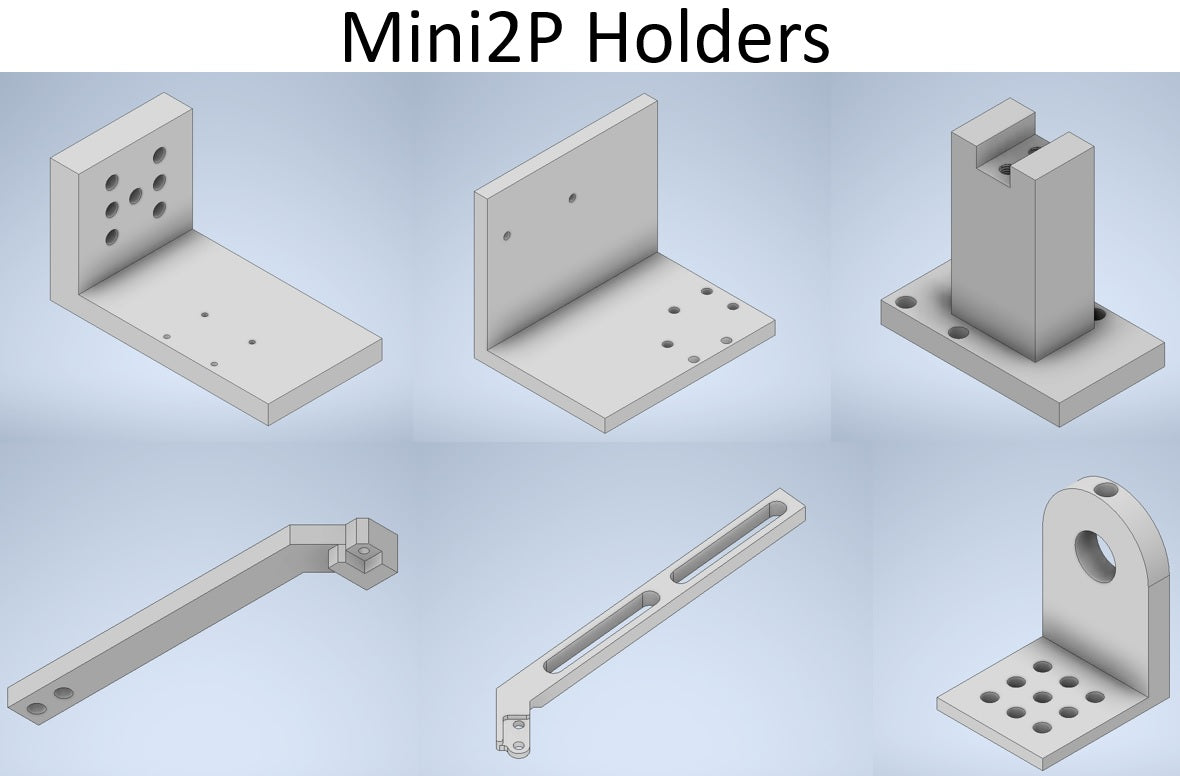

Mini2P holder etc.

• MINI2Pholders: P1, P2, P3, P4
• Wheel holder
• Headbar holder

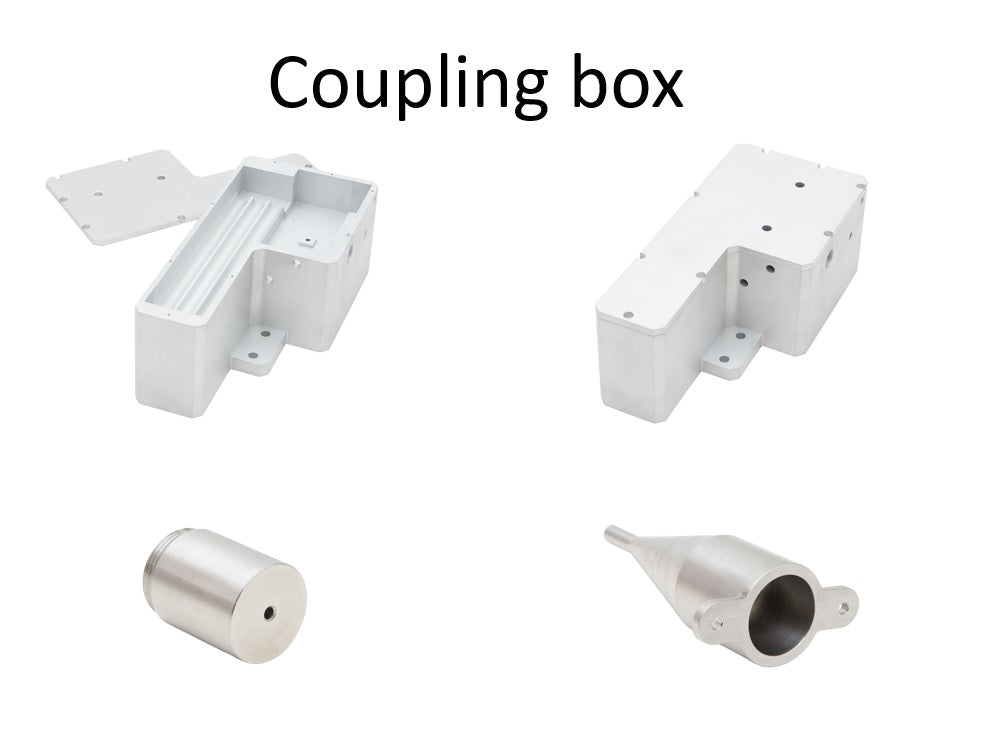

Coupling box parts

• Coupling box (Al7075 with sand spray)
• Coupling box cap (Al7075 with sand spray)
• Coupling holder (stainless steel)
• Coupling protector (stainless steel)

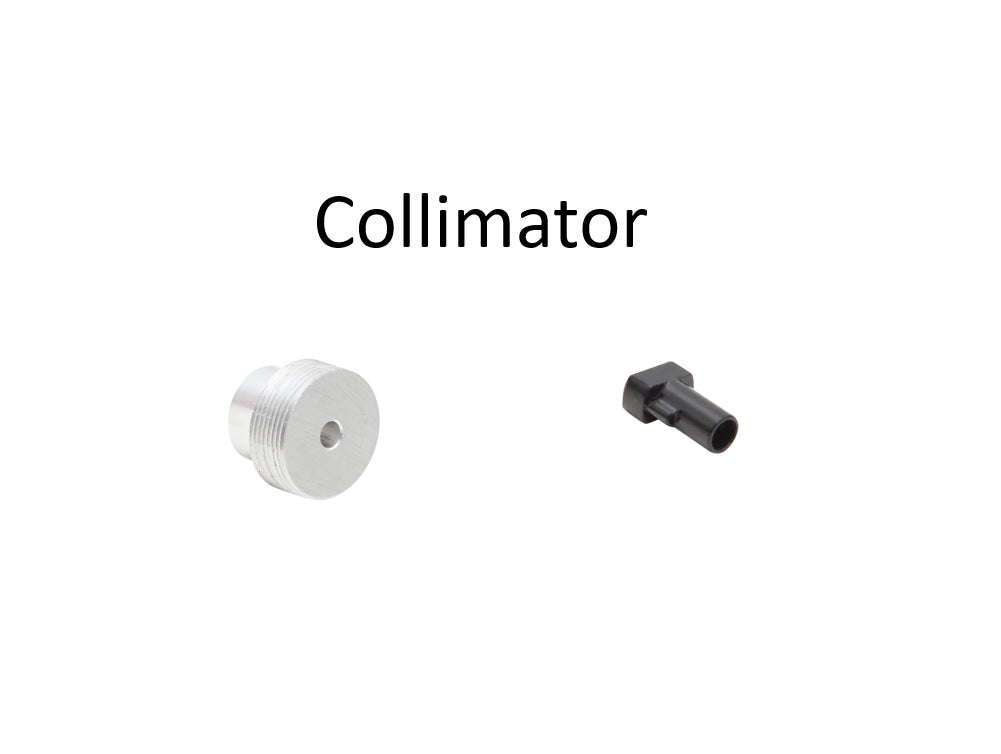

Collimator

• Collimator assemble tool (Al6061)
• Collimator holder (Al6061 black anodized)

We have a very limited initial supply.  After that the next batch will be available within 6 weeks.

W Zong, HA Obenhaus, ER Skytøen, H Eneqvist, NL de Jong, R Vale, MR Jorge, MB Moser, EI Moser (2022). Large-scale two-photon calcium imaging in freely moving mice. Cell.
