AudioMoth Dev Case

Name: AudioMoth Dev Case
Brand: Founding developers Alex Rogers, Andrew Hill, and Peter Prince
Price: 59.99 USD
Availability: InStock

Founding developers Alex Rogers, Andrew Hill, and Peter Prince

$59.99 USD

In stock

Founding developers Alex Rogers, Andrew Hill, and Peter Prince

The AudioMoth, Hydromoth and MicroMoth were created by two computer science PhD students at the University of Southampton, Andrew Hill and Peter Prince, together with Alex Rogers, a computer science professor at the University of Oxford. The AudioMoth was the first product of their OpenAcousticDevices initiative.

Description

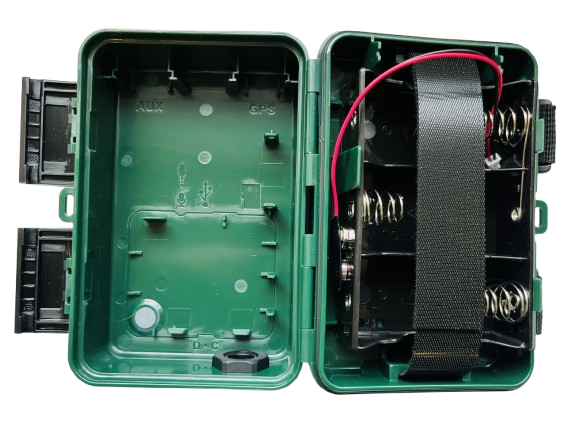

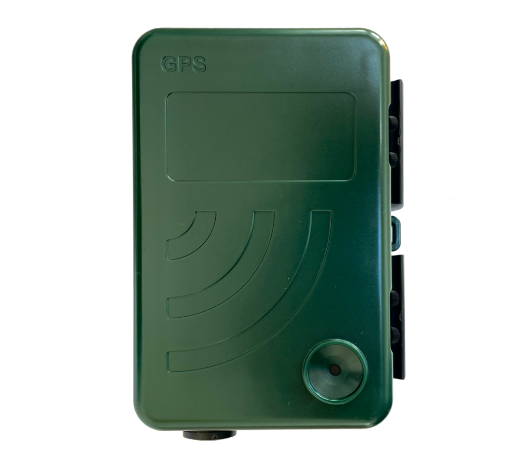

The AudioMoth Dev Case is a robust, waterproof, injection-moulded enclosure designed specifically for the AudioMoth Dev. Built for maximum flexibility, it features integrated mounts and expansion slots that support external microphones, GPS modules, large batteries, and custom auxiliary boards—making it ideal for advanced and long-term field deployments.

Key Features

Injection-moulded enclosure, sealed using dual clasps and compression O-ring
Waterproof rating: IPX7 (up to 1 metre submersion for 1 hour)
Dimensions: 100 × 140 × 65 mm
Waterproof GAW334 acoustic vent to protect the microphone
Slot for AudioMoth GPS Board and additional custom 26 × 24 mm auxiliary board
M16 cable gland opening with replaceable cap
Includes D-cell battery holder and connecting cable
Two removable, adjustable Velcro straps for easy mounting on 3–6 cm diameter branches or poles

Content

2x Velcro straps for deployment
1x D-cell battery holder with cable
1x GAW334 acoustic vent
1x O-ring seal
1x M16 cable gland cap
2x Clasps

Spares parts included:

1x O-ring seal
2x GAW334 acoustic vents

Documentation

GitHub

Source Code

GitHub

Forum

Open Acoustic Devices Forum
