Mini2P - Scope Cable Harness v1

Founding developers Edvard Moser, May-Britt Moser, and Weijian Zong


Accessories for Mini2P - Scope Cable Harness v1

Founding developers Edvard Moser, May-Britt Moser, and Weijian Zong

Edvard Moser and May-Britt Moser lead the Kavli Institute for Systems Neuroscience in Trondheim, Norway. In 2014 they received the Nobel Prize in Physiology or Medicine.

Weijian Zong is a researcher at the Kavli Institute for Systems neuroscience where his main research interests are bio-imaging, neuroscience, neuronal computation.


The Mini2P-Scope Cable Harness v1 is an essential component for the Mini2P miniscope, a 2-photon device used for large-scale calcium imaging in freely moving mice. The Mini2P can obtain stable simultaneous recordings of over a thousand cells across multiple planes in densely active cortical regions, even during various behavioral tasks.

EXPERIMENTAL CAPABILITIES

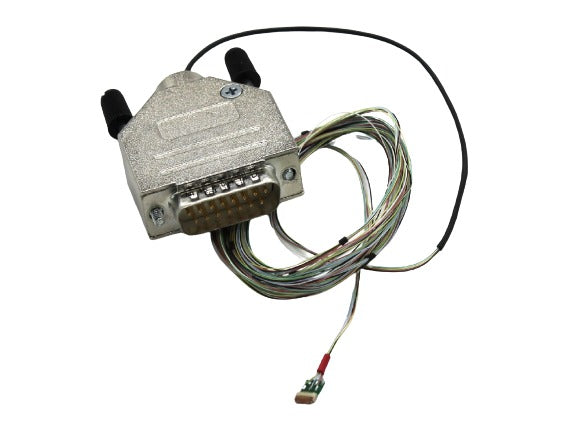

The Mini2P-Scope Cable Harness v1 serves as the connection between the control box of the Mini2P and the microscope's body. It consists of a 6-wire bundle that drives the µTLens and the MEMS mirror. The lightweight design of the cable follows the instructions provided by Weijian Zong. The cable interfaces with the control box through a D-SUB 25 connector and the scope body through a 6-position FH19C connector. To ensure stability, the tiny connector is supported by an extra-thin PCB that provides a secure resting place for the 6 wires.

KEY FEATURES

  • 2.5 meters long, lightweight
  • Retains the original color scheme
  • Mechanically tough due to the support PCB
  • Conformally coated to protect the user from high voltage driver signals

CONTENTS

  • Cable with D-SUB 25 connector and 6-position FH19C connector

FULFILLMENT

Shipped 4-6 weeks after order is received.

PUBLICATION

W Zong, HA Obenhaus, ER Skytøen, H Eneqvist, NL de Jong, R Vale, MR Jorge, MB Moser, EI Moser (2022). Large-scale two-photon calcium imaging in freely moving mice. Cell.
