Electronic Interface Board - up to 64-channels - pack of 8 PCBs

LabMaker


Accessories for Electronic Interface Board - up to 64-channels - pack of 8 PCBs
  • 1x Omnetics A79026-001 for EIB - $60.00 USD (details)
  • 5x Omnetics A79026-001 for EIB - $275.00 USD (details)
  • EIB - 70x Gold Pins 0.35 mm - $25.00 USD (details)
  • EIB - 70x Gold Pins 0.50 mm - $25.00 USD (details)

LabMaker

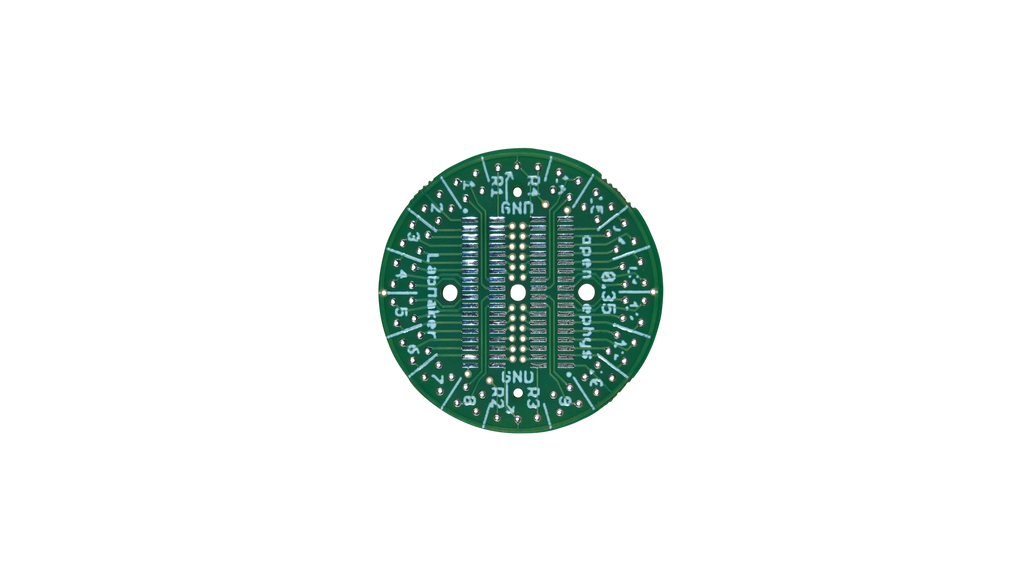

Electronic Interface Board EIB, up to 64-channels for one or two Omnetics A79026-001

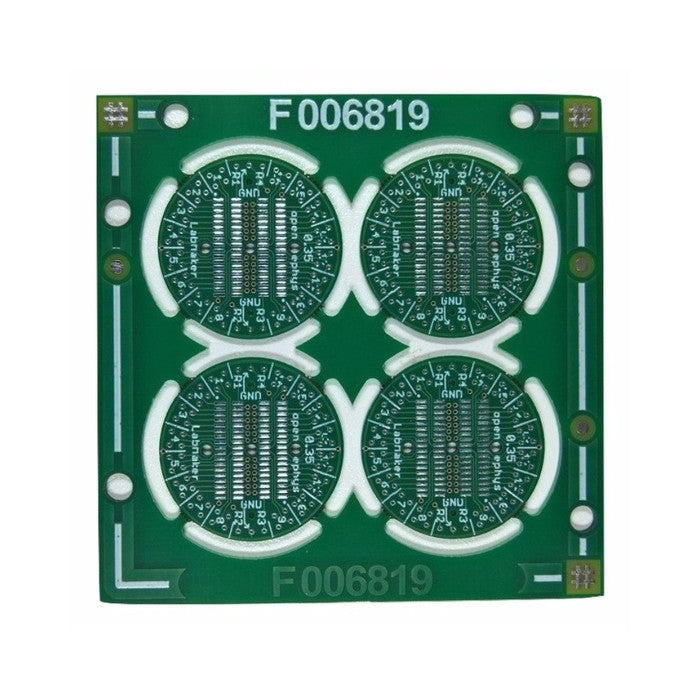

Package contents: 8 PCBs for 64-channel EIBs with 0.50 or 0.35 mm [select] holes. Omnetics connectors not included, order separately.

Link to Omnetics: A79026-001

Includes three holes for 1.25 mm fiber optic ferrules, and two holes for screws. Supports 16 tetrodes.

Version for larger (0,50, recommended) or small (0.35 mm) Neuralynx gold pins.

NOTE: The spacing of the connectors is not compatible with the 64-channel Intan RHD2164 headstages . You will need to use two separate 32-channel headstages.

Documentation Source Code
