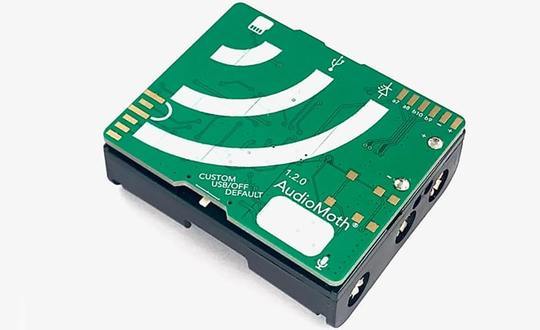

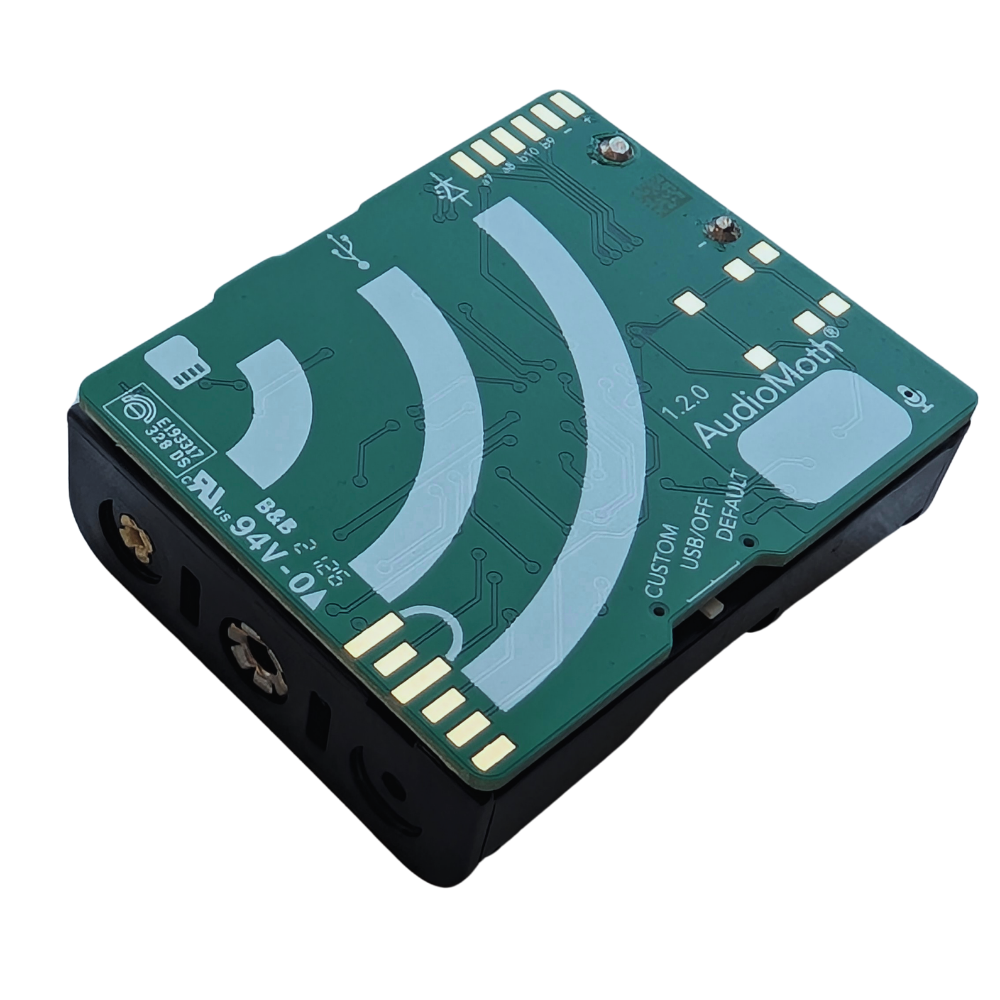

AudioMoth v1.2.0

Founding developers Alex Rogers, Andrew Hill, and Peter Prince

$970.00 USD

Quantity:

Single Pack of 10 @US$97/unit Pack of 100 @US$93/unit

Variant

Accessories for this product

Audiomoth IPX7 Case$39.99 USD

Details
AudioMoth Underwater Case$39.99 USD

Details
AudioMoth GPS Hat$59.00 USD

Details
AudioMoth GPS Board$69.00 USD

Details

Founding developers Alex Rogers, Andrew Hill, and Peter Prince

The AudioMoth, Hydromoth and MicroMoth were created by two computer science PhD students at the University of Southampton, Andrew Hill and Peter Prince, together with Alex Rogers, a computer science professor at the University of Oxford. The AudioMoth was the first product of their OpenAcousticDevices initiative.

Record Audible And Ultrasonic Wildlife Sounds

Description

AudioMoth is a low-cost, open-source acoustic monitoring device used for monitoring wildlife. AudioMoth is not only sensitive to audible sounds but well into ultrasonic frequency range. It records uncompressed audio from 8000 up to 384,000 samples per second onto micro SD card

YOUR CONTRIBUTION TO AUDIOMOTH DEVELOPMENT

US$15 for each Audiomoth going to the developers supports further product development.

Key Features

EFM32 Gecko processor
Capable of recording uncompressed audio to micro SD from 8k to 384k samples/second
Records uncompressed WAV files to SD card
Powered by 3 x AA batteries
Analog MEMS microphone
Analog pre-amplifier with adjustable gain
Measures just 58 x 48 x 15 mm
Configurable USB interface
Onboard real-time clock keeps track of time in UTC
New indented switch, SD card connector and USB connector to better protect the switch from accidental damage and to allow for a flush fit inside cases and enclosures.
New right-angle mounted PMOD header for expansion boards using UART.
Comes with pre-installed firmware

Enhancements in version 1.2.0 include:

New onboard MEMS microphone
Improved recording quality
Improved performance with rechargeable NiMH batteries
Exposed footprint on the PCB for an external microphone via a 3.5 mm jack. (Note: This requires hand soldering. LabMaker does not provide this part)
IMPORTANT TO KNOW: When the 3.5mm socket is attached, AudioMoth is no longer compatible with the Official AudioMoth IPX7 case.

Content

1x Audiomoth v1.2.0

Comes with firmware version 1.10.0 pre-installed

Note that all versions of AudioMoth firmware and apps are compatible with all hardware versions.

Batteries, microSD card and USB cable not included.

Fulfillment

Fulfilment of new orders will be done immediately on ordering.

Publication

• Andrew P. Hill, Peter Prince, Jake L. Snaddon, C. Patrick Doncaster, Alex Rogers. AudioMoth: A low-cost acoustic device for monitoring biodiversity and the environment. HardwareX.

• Hill AP, Prince P, Piña Covarrubias E, Doncaster CP, Snaddon JL, and Rogers A (2017). AudioMoth: Evaluation of a smart open acoustic device for monitoring biodiversity and the environment. Methods in Ecology and Evolution.

• TAC Lamont, L Chapuis, B Williams, S Dines, T Gridley, G Frainer, J Fearey, PB Maulana, ME Prasetya, J Jompa, DJ Smith, SD Simpson (2022). HydroMoth: Testing a prototype low-cost acoustic recorder for aquatic environments. Remote Sensing in Ecology and Conservation.

For any further enquiries related to this product, please contact us.

Documentation

Operation Manual

Source Code

Github

Forum

Open Acoustic Devices Info
