pyControl - Breakout Board
Part of the pyControl behavioural experimental system

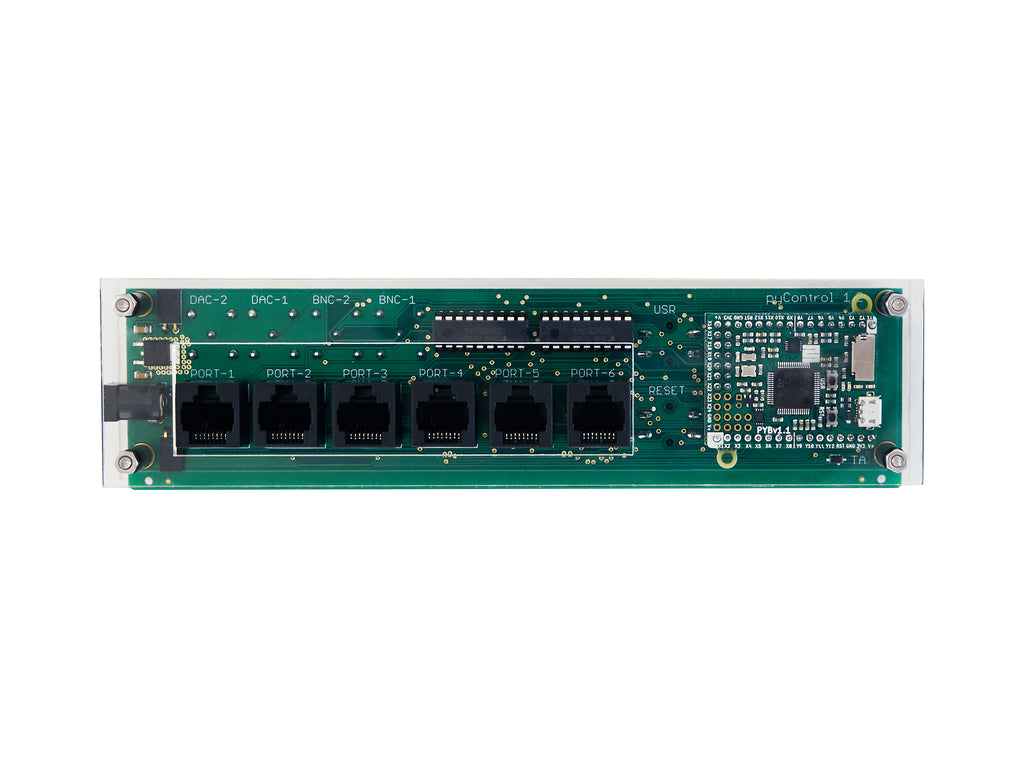

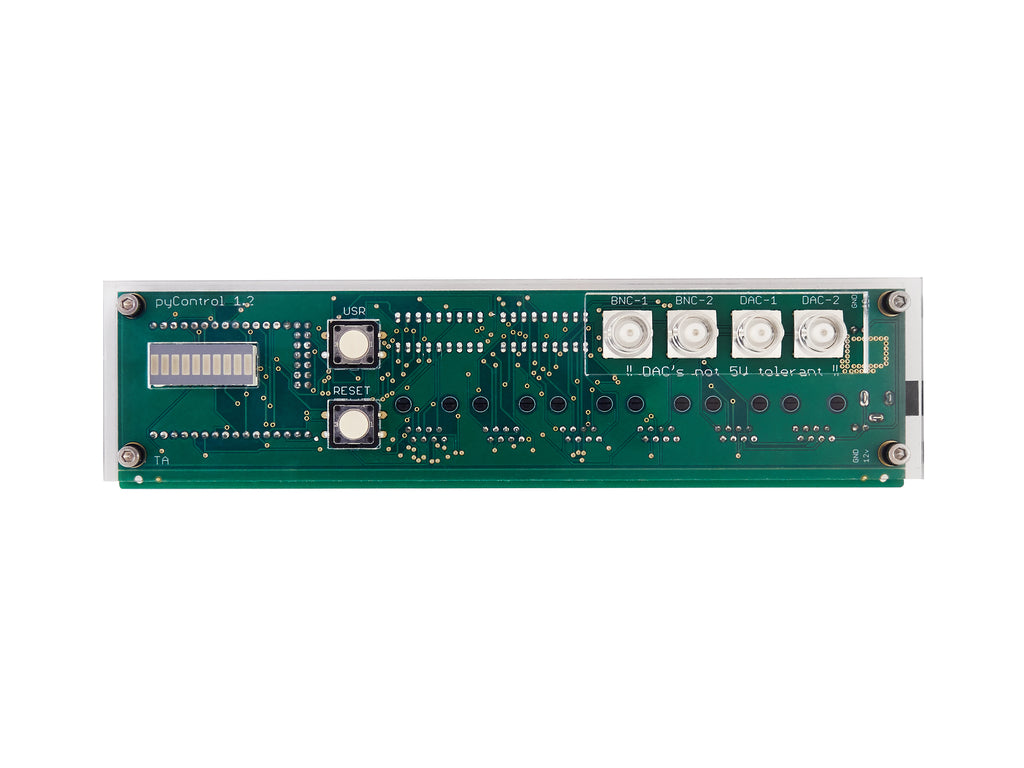

The pyControl Breakout Board forms the core of each pyControl hardware setup. It interfaces a pyboard microcontroller with a set of 6 behaviour ports, 4 BNC connectors, indicator LEDs and user pushbuttons. Many setups, each with their own breakout board, can be controlled from a single computer via USB.
pyControl peripherals used to construct the behavioural setup connect to the breakout boards behaviour ports.
!!! Electrical safety !!!
When connecting devices to breakout boards it is important to consider the amount of current they will draw. More info
Documentation Source Code
