Miniscope V4 - Hot Fix Flex PCB

Founding developer Daniel Aharoni



Founding developer Daniel Aharoni

After the sweeping success of the V3.2 Miniscope Daniel Aharoni continues to raise miniscope technology to new levels from his UCLA lab focussed on developing neuro-behavioral recording techniques for freely behaving animals. Significant contributors to the V4 were also the Cai and Shuman labs at Mount Sinai, and the Blair lab at UCLA.

It builds on the GolshaniSilva, and Khakh UCLA labs' initiative coordinated by Daniel Aharoni of making Mark Schnitzer's pioneering invention (Nature Methods 2011) open source.

The UCLA miniscope community maintains a WiKi to help disseminate this open source technology to the larger neuroscience community.

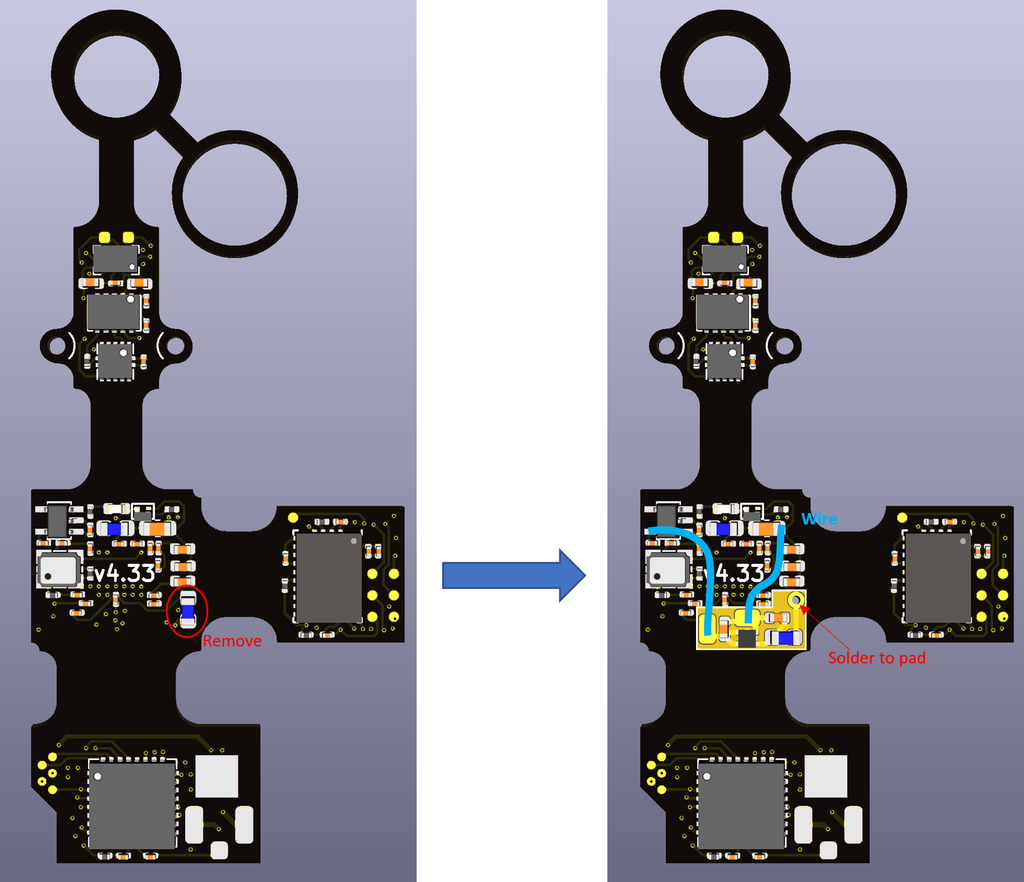

Hot fix PCB for the early Miniscope V4 units BEFORE version 4.40. Provides a dedicated voltage regulator for the imaging sensor. The circuit isolates the 3.3V reference voltage of the CMOS image sensor from the electrical noise produced by the electrowetting lens driver. Instructions

DD_PIX Hot Fix PC Specs:

  • 2 layer flex PCB
  • Designed to be easily installed to existing Miniscopes V4.3 and below.
  • Made in Germany

FULFILLMENT

Pre-Orders will be fulfilled end-January, 2021.

    Note: The images shown on the product page are only for reference.



    Documentation Source Code
